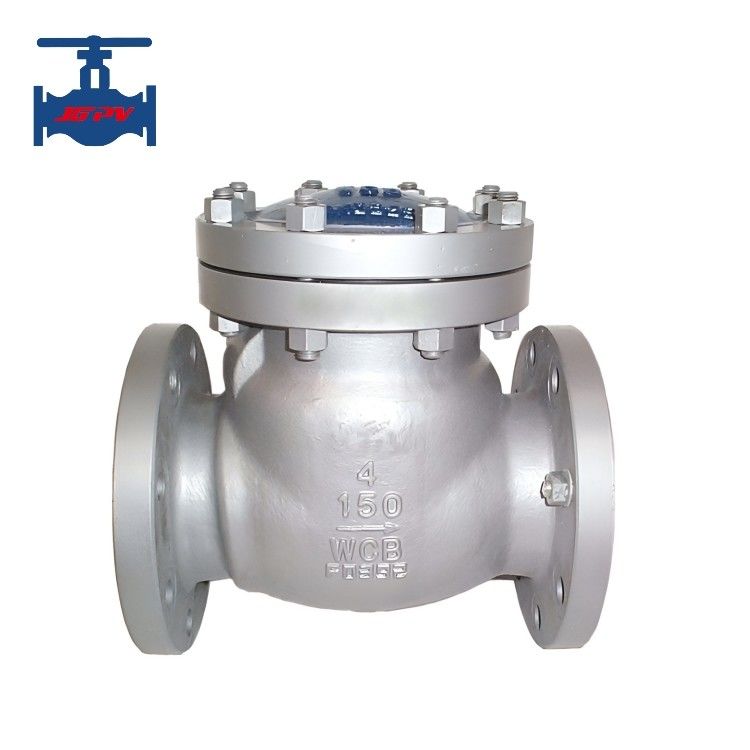

Cast steel swing check valve.

Dettagli del prodotto

Place of Origin: China

Termini di pagamento e di spedizione

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 100pcs per month

Ottieni il miglior prezzo

Dettagli del prodotto

Descrizione del prodotto

Evidenziare:

Application::	General	Medium Type::	Water, steam and oil etc.
Mounting Type::	Direct Mount	Standard Or Non-Standard::	Standard
Flow way::	Two way	Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing	Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure	Quality Warranty::	18 Months

Application::	General
Medium Type::	Water, steam and oil etc.
Mounting Type::	Direct Mount
Standard Or Non-Standard::	Standard
Flow way::	Two way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Cast steel swing check valve.

Highlight: Cast steel swing check valve.

Product introduction:

Check valve is also known as back-pressure valve or non-return valve, it is to prevent the pipeline medium flow back.

The opening and closing parts are opened or closed by the medium flow and force to prevent the medium from flowing back.Swing check valve is a type of check valve, the internal use of rocker arm swing type structure.This kind of valve is widely used in chemical industry, metallurgy, pharmaceutical and other fields, generally should be installed horizontally in the pipeline.

Product technical parameters:

Diameter nominal DN(mm)		50～500
Pressure nominal PN(MPa)		1.0～2.5
Pressure test Ps(MPa)	Strength test (water)	1.5～3.75
	Seal test (water)	1.1～2.75
Connection way		Flange

Product features:

1.swing check valve is suitable for the occasion of large diameter, installation position is not restricted, usually installed in horizontal pipeline, swing check valve is suitable for the occasion of large diameter, fluid resistance is generally less than the lifting check valve,

2. Swing check valve rocker arm and disc connection using spherical connection structure, so that the disc in the range of 360 degrees have a certain degree of freedom, there is appropriate trace position compensation.

3. Swing check valve with built-in rocker arm swing structure, all valve opening and closing parts are installed in the valve body, do not penetrate the valve body, in addition to the flange part with sealing gasket and sealing ring, the overall no leakage point, eliminate the possibility of valve leakage.
