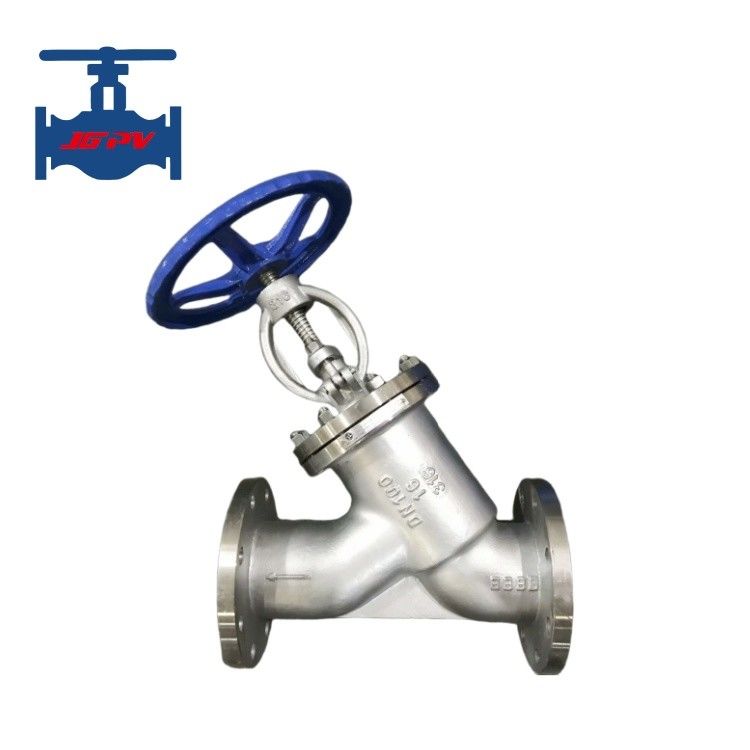

Y type globe valve

Dettagli del prodotto

Place of Origin: China

Termini di pagamento e di spedizione

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 100pcs per month

Ottieni il miglior prezzo

Dettagli del prodotto

Descrizione del prodotto

Evidenziare:

Application::	General	Medium Type::	Water, steam and oil etc.
Mounting Type::	Direct Mount	Standard Or Non-Standard::	Standard
Flow way::	Two way	Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing	Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure	Quality Warranty::	18 Months

Application::	General
Medium Type::	Water, steam and oil etc.
Mounting Type::	Direct Mount
Standard Or Non-Standard::	Standard
Flow way::	Two way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Y type globe valve

Highlight: Y type globe valve

Product introduction:

The Y-type globe valve is a common type of valve, named for its structural shape resembling the letter "Y". Primarily used to control fluid flow, it offers excellent shut-off performance and flow regulation capability.The main feature of the Y-type globe valve lies in its unique internal structure design. It adopts a "Y"-shaped channel design, enabling the fluid to form a swirling flow as it passes through the valve. This reduces the impact and wear of the fluid on the valve. Meanwhile, the Y-type globe valve has a larger channel area, ensuring high flow capacity while minimizing pressure loss.During operation, the Y-type globe valve also demonstrates reliable sealing performance. With a robust sealing structure, it effectively prevents medium leakage. Additionally, it boasts high corrosion and high-temperature resistance, making it suitable for various working conditions.

Product technical parameters:

Nominal Pressure PN(MPa)		1.0 - 4.0
Nominal Diameter DN(mm)		15～600
Test pressure (MPa)	Strength (water)	1.5 times of pressure nominal
	Sealing (water)	1.1 times of pressure nominal
	Sealing (Air)	0.6 times of pressure nominal
	Sealing for bellows (water)	1.5 times of pressure nominal
Raw material		WCB, CF8, CF8M
Medium suitable:		Water, steam, oil mediums
Working temperature		-196℃～600℃
Connection type		Flange
Operational method		Hand-wheel, bevel gear, pneumatic and electric actuators

Product features:

The product features a rational structure, reliable sealing, excellent performance, attractive appearance, and is convenient for manufacturing and maintenance.
It has a short working stroke and quick opening/closing time.
The sealing surface is surfacing-welded with Stellite hard alloy, featuring strong wear resistance, corrosion resistance, and friction resistance for a long service life.
The valve stem undergoes quenching & tempering and surface nitriding treatment, ensuring good corrosion and friction resistance.
It can adopt a double-sealing design (including bellows), providing more reliable performance and preventing external leakage.
The valve stem lifting position indicator offers intuitive visualization.
The material of components, as well as the dimensions of flanges and butt-welding ends, can be rationally configured according to actual working conditions or user requirements to meet various engineering needs.
