Cast Steel Globe Valve

Dettagli del prodotto

Place of Origin: China

Termini di pagamento e di spedizione

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 100pcs per month

Ottieni il miglior prezzo

Dettagli del prodotto

Descrizione del prodotto

Evidenziare:

Application::	General	Medium Type::	Water, steam and oil etc.
Mounting Type::	Direct Mount	Standard Or Non-Standard::	Standard
Flow way::	Two way	Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing	Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure	Quality Warranty::	18 Months

Application::	General
Medium Type::	Water, steam and oil etc.
Mounting Type::	Direct Mount
Standard Or Non-Standard::	Standard
Flow way::	Two way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

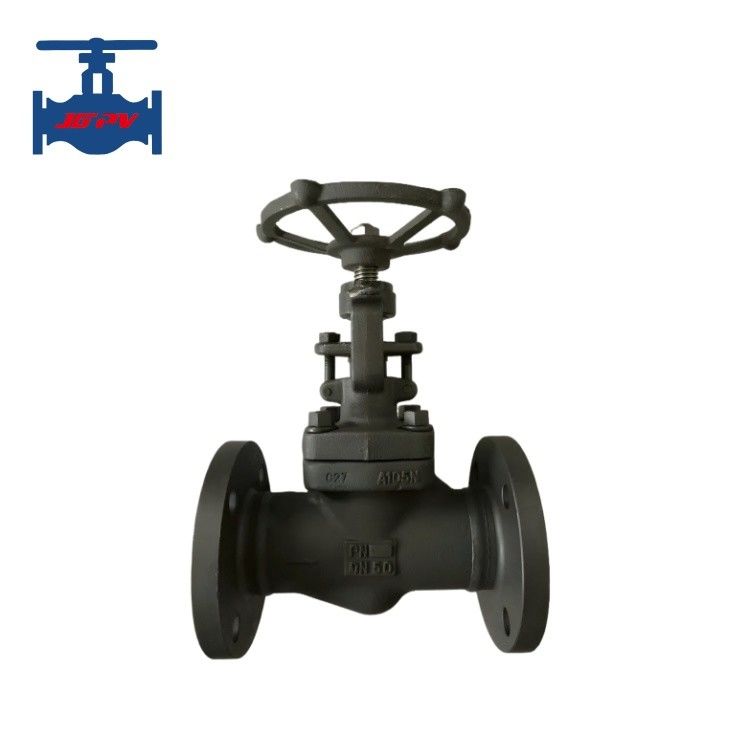

Cast Steel Globe Valve

Highlight: Cast Steel Globe Valve

Product introduction:

The cast steel globe valve adopts a rising stem bracket type structure with bolted bonnet connection, featuring a rotating lifting stem and handwheel. The design of the valve body and bonnet undergoes strict calculations to ensure excellent strength, rigidity, and flow capacity. The bonnet is equipped with a backseat seal, which enhances the reliability of the packing seal in the fully open position and facilitates packing replacement.Suitable for pipelines in various working conditions such as petroleum, chemical, metallurgy, electric power, papermaking, pharmaceutical, food, water treatment, petrochemical, and thermal power plants, it is used to cut off or connect pipeline media.

Product technical parameters:

Nominal Diameter DN (mm)		15~200
Nominal Pressure PN (MPa)		1.6
Test Pressure (MPa)	Strength (water)	2.4
Test Pressure (MPa)	Enclose (Water)	1.76
Main Components	Body	WCB/CF8/CF8M
	Valve ball	Stainless steel/Carbon steel
	Seat	PTFE
	Packing	Soft graphite
	Shaft	2Cr13
	Handle	Ductile iron
Working temperature		≤150℃
Medium suitable		Water, oil, steam

Product features:

The valve seat and disc adopt a flat or conical sealing configuration.
The seat ring is connected to the valve body via threading or welding. Threaded seats are easily removable for maintenance or replacement.
For metal-to-metal seals, the sealing surface material is directly hardfaced onto the valve body.
