Flanged Diaphragm Valve for Water Steam Oil ISO Certified

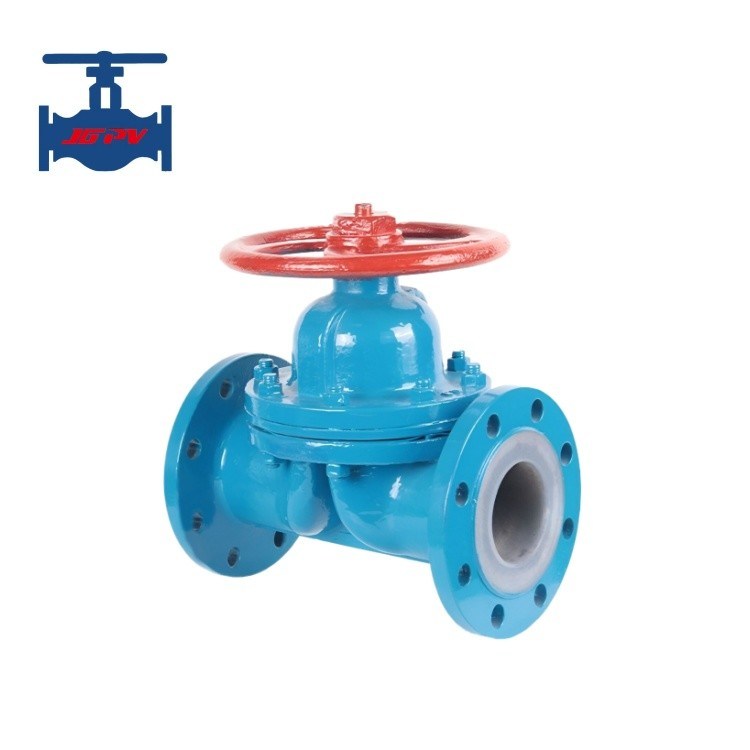

Flanged Diaphragm Valve

Product Specifications

Application:	General
Certificate:	ISO9001, ISO14001
Medium Type:	Water, steam and oil etc.
Function:	Condensate drain
Connection:	Screw/Flange/welded
Mounting Type:	Direct Mount
Standard Or Non-Standard:	Standard
Flow way:	Two way
Actuation:	Manual, Electric, Pneumatic, Automatic
Sealing Performance:	Sealing
Working Temperature:	Normal Temperature And High Temperature
Pressure Application:	Normal Pressure
Quality Warranty:	18 Months

Product Description

A diaphragm valve is a special type of valve with a shut-off function. Its closing part consists of a steel valve disc and a diaphragm made of soft materials (a composite of rubber and fluoroplastic), which separates the inner cavity of the valve body from the inner cavity of the valve cover, so as to achieve the purpose of shutting off the medium in the pipeline.

Technical Parameters

Nominal Diameter DN (mm)	15~200
Nominal Pressure PN (MPa)	1.6
Test Pressure (MPa)	Strength (water): 2.4 Enclose (Water): 1.76
Main Components	Body: WCB/CF8/CF8M Valve ball: Stainless steel/Carbon steel Seat: PTFE Packing: Soft graphite Shaft: 2Cr13 Handle: Ductile iron
Working temperature	≤150℃
Medium suitable	Water, oil, steam

Key Features

Elastic-sealed opening and closing parts ensure no internal leakage
The streamlined flow channel results in small pressure loss
There is no stuffing box, so there is no external leakage
The valve body and the cover are separated by an intermediate diaphragm, protecting upper components from medium erosion
The diaphragm can be replaced, resulting in low maintenance costs
