Evidenziare:
                                                                                                                                                                                                                                                                                                                                                                                                                                                Digital balancing valve for HVAC, HVAC balancing valve with lock, Locking device balancing valve


Applicazione::	Generale	Certificato::	ISO9001, ISO14001
Tipo medio::	Acqua, vapore e olio ecc.	Funzione::	Scarico di condensa
Connessione::	Filettato / flangiato / saldato	Standard o non standard::	Standard
Way Flow::	A due via	Attuazione::	Manuale, elettrico, pneumatico, automatico
Performance di sigillatura::	Sigillatura	Temperatura di lavoro::	Temperatura normale e alta temperatura
Applicazione di pressione::	Pressione normale	Garanzia di qualità::	18 mesi

Applicazione::	Generale
Certificato::	ISO9001, ISO14001
Tipo medio::	Acqua, vapore e olio ecc.
Funzione::	Scarico di condensa
Connessione::	Filettato / flangiato / saldato
Standard o non standard::	Standard
Way Flow::	A due via
Attuazione::	Manuale, elettrico, pneumatico, automatico
Performance di sigillatura::	Sigillatura
Temperatura di lavoro::	Temperatura normale e alta temperatura
Applicazione di pressione::	Pressione normale
Garanzia di qualità::	18 mesi

Digital Balancing Valve with Locking Device for HVAC Systems

Digital Balancing Valve

Product Specifications

Application:	General
Certificate:	ISO9001, ISO14001
Medium Type:	Water, steam and oil etc.
Function:	Condensate drain
Connection:	Threaded / Flanged / Welded
Standard Or Non-Standard:	Standard
Flow way:	Two way
Actuation:	Manual, Electric, Pneumatic, Automatic
Sealing Performance:	Sealing
Working Temperature:	Normal Temperature And High Temperature
Pressure Application:	Normal Pressure
Quality Warranty:	18 Months

Product Overview

The SP15F digital locking balancing valve is a new type of energy-saving valve with special functions. Equipped with a digital display for opening degree, a digital locking device, and a small pressure-measuring valve for flow measurement, this valve allows intuitive adjustment to any position.

Technical Parameters

Nominal Diameter DN (mm)	15~200
Nominal Pressure PN (MPa)	1.6
Test Pressure (MPa)	Strength (water): 2.4 Enclose (Water): 1.76
Main Components	Body: WCB/CF8/CF8M Valve ball: Stainless steel/Carbon steel Seat: PTFE Packing: Soft graphite Shaft: 2Cr13 Handle: Ductile iron
Working temperature	≤150℃
Medium suitable	Water, oil, steam

Key Features

Digital control and precise adjustment enhance the operating efficiency and stability of the system
Reducing pipeline resistance improves the flow state of air and water in the system
Remote control via mobile apps enables remote adjustment and monitoring
Simple structure, convenient maintenance, long service life, and low cost

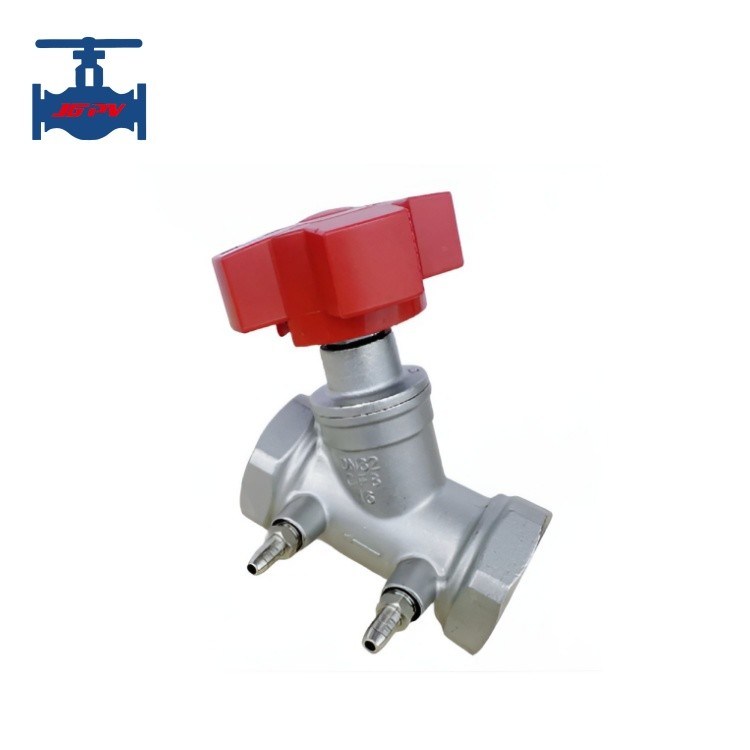

Product Images
